Description
Steel ropes are mounted in parallel to conveyor systems and are used for emergency stop operation. Connection equipment has been produced in accordance with the standards, suitable for the use of KBT emergency stop switches. The equipment are produced according to EN 60947-5-1 and DIN EN 418 standards.

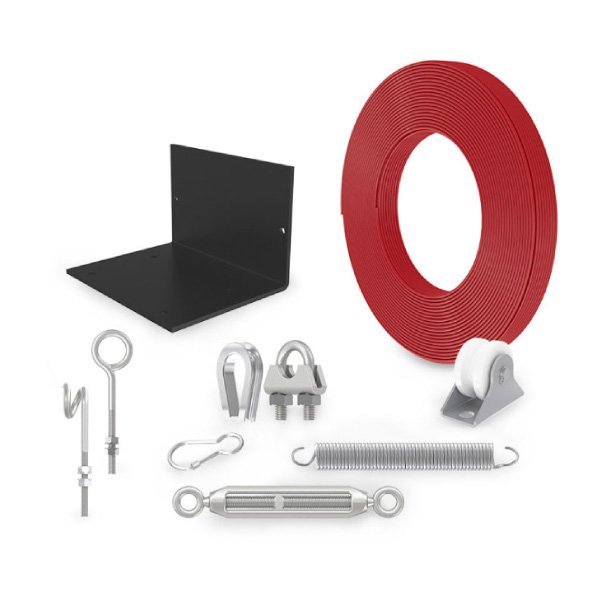

Rope System Connection Equipments include Eye Bolt, Spring, Rope Eye, Rope Clamp, Pig Tail Eye Bolt, Turnbuckle Eye-Hook, Eye-Eye, Mounting Bracket, Carabiner.
Insulated Steel Pull Rope
The product is colored red to suit the required security practices. The soft outer part makes it easy to use and durable by the user. It is made of PVC which is resistant to ambient conditions.
| Product Name | Product Code | Description |
| Steel Rope 3/5 %50 UV + %50 PVC coating | SR-050-03 | 5 mm Insulated Steel Rope. 3 mm steel wire, 2 mm protective coating. Red. |
| Steel Rope 5/7 %50 UV + %50 PVC coating | SR-070-05 | 7 mm Insulated Steel Rope. 5 mm steel wire, 2 mm protective coating. Red. |
| Steel Rope 3/5 %100 UV covering | SR-050-03UV5 | 5 mm Insulated Steel Rope. 3 mm steel wire, 2 mm protective coating. Red. |
| Steel Rope 5/7 %100 UV coating | SR-070-05UV5 | 7 mm Insulated Steel Rope. 5 mm steel wire, 2 mm protective coating. Red. |
Min. order quantity 25 meters.
Rope Tension Spring
It is mounted on the rope of the emergency stop switch on the right and left side of the conveyor belts. The tension of each spring should be high during assembly. With the rope movement, it must move the emergency stop switch. Otherwise, if there is no tension, the stop will not be provided at the desired speed. We recommend that you use the rope tensioning apparatus to provide this tension. Springs are made of stainless steel material. A special process has been applied on the springs. The reason for this is to be resistant to external factors and to maintain its hardness strength for many years.
| Product Name | Product Code | Description |
| Rope Tension Spring | NB-055SS | Stainless Steel |
Turnbuckle
This equipment, which is directly mounted to the product, allows the tension adjustment of the entire rope.
| Product Name | Product Code | Description |
| Eye-Hook Turnbuckle | GK-10 | Galvanized Material Eye-Hook,10mm. |
| Eye-Eye Turnbuckle | GG-10 | Galvanized Material Eye-Eye,10mm. |
| Eye-Hook Turnbuckle | GK-10SS | Stainless Steel Material Eye-Hook,10mm. |
| Eye-Eye Turnbuckle | GG-08SS | Stainless Steel Material Eye-Eye,10mm. |
Rope Clamp
While securing the rope with clamps, a thimble should definitely be used in order to prevent the steel rope from breaking. To make an eye out of steel rope, at least two clamps must be used. Please review the pull rope switch installation manual and accessory installation guide. Clamp usage is explained with pictures in the installation manual.
| Product Name | Product Code | Description |
| Steel Rope Clamp | ZB-216 | Galvanized Body. Suitable for 5 mm steel rope. |
| Steel Rope Clamp | ZB-216S | Stainless Steel Body. Suitable for 5 mm steel rope. |
| Steel Rope Clamp | ZB-722 | Galvanized Body. Suitable for 7 mm steel rope. |
| Steel Rope Clamp | ZB-722S | Stainless Steel Body. Suitable for 7 mm steel rope. |
Rope Thimbles
It is used to ensure that the steel rope does not stretch and break during assembly.
| Product Name | Product Code | Description |
| Rope Thimbles | RB-050 | Galvanized Body. Suitable for 5 mm steel rope. |
| Rope Thimbles | RB-050SS | Stainless Steel Body. Suitable for 5 mm steel rope. |
| Rope Thimbles | RB-070 | Galvanized Body. Suitable for 7 mm steel rope. |
| Rope Thimbles | RB-070SS | Stainless Steel Body. Suitable for 7 mm steel rope. |
Eyebolts, Rope Loops
It is used to prevent the sag of the steel rope or to fix it at one point. It has two options as open type and closed type.
| Product Name | Product Code | Description |
| Eyebolts, Rope Loops | KN-013 | Galvanized Body, M8. |
| Eyebolts, Rope Loops | KN-023 | Galvanized Body, M10. |
| Eyebolts, Rope Loops | KN-013SS | Stainless Steel, Body M8. |
| Eyebolts, Rope Loops | KN-023SS | Stainless Steel, Body M10. |
Pigtail Eye Bolt
Pigtail Eye Bolt is used to prevent the sag of the steel rope or to fix it at one point. It has two options as open type and closed type.
| Product Name | Product Code | Description |
| Pig Tail Eye Bolt | KN-015 | Galvanized Body, M8. |
| Pig Tail Eye Bolt | KN-025 | Galvanized Body, M10. |
| Pig Tail Eye Bolt | KN-015SS | Stainless Steel Body, M8. |
| Pig Tail Eye Bolt | KN-025SS | Stainless Steel Body, M10. |
Carabiner
Thanks to its design, the carabiner is a functional product that can be used both as a ring and as a hook. It enables the connection apparatus to be interlocked with each other during the application.
| Product Name | Product Code | Description |
| Carabiner | KK-55 | Galvanized Body, 5mm. |
| Carabiner | KK-88 | Galvanized Body, 8mm. |
| Carabiner | KK-55SS | Stainless Steel Body, 5mm. |
| Carabiner | KK-88SS | Stainless Steel Body, 8mm. |
Rope Roller
If there is an angular section in the conveyor system, this apparatus is needed to ensure the transfer. It has two different models as variable direction head and fixed head.
| Product Name | Product Code | Description |
| Rope Direction Roller | YM-40-03 | 40 mm wheel diameter. Suitable for 5 mm, 6 mm and 7 mm rope. |
