Description
Uses and Applications:

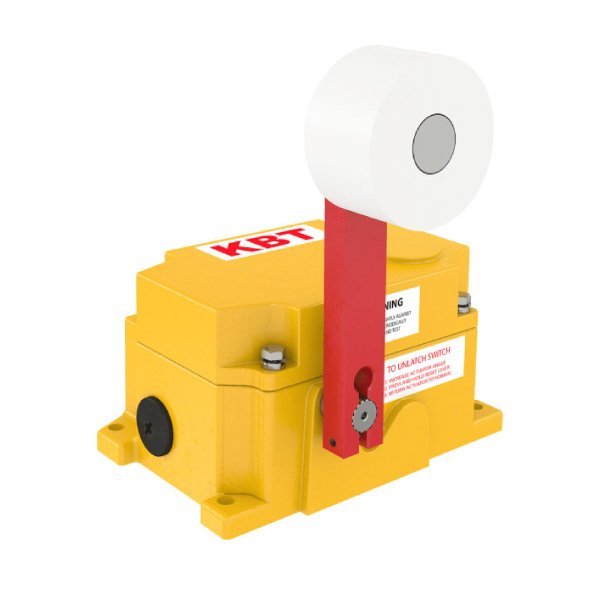

NSR66-PS Conveyor Belt Position Switch is a heavy-duty limit switch that has a variety of uses in industrial fields.
This model is usually used on tripper floors to enunciate the position of the tripper car. It ensures that the material is being unloaded in the correct spot.
Once the roller actuator arm is moved from its normal position, the microswitches are tripped. The microswitches can be used to alarm the control system, indicating either to shut it down or to move the piece of heavy machinery.
Safety Features:
NSR66-PS Conveyor Belt Position Switch is utilized as a limit switch to protect gravity take-ups on conventional conveyors.
Certifications and Standards:
The microswitch used in products is VDE approved. All KBT Electric products are produced in accordance with CE and EAC standards.
Technical Specifications
| Enclosure | Aluminium Casting |
| Micro Switch Rating | 250 VAC 15A / 24 VDC 10A |
| Output Signal | (2) SDPT Alarm and Stop |
| Cable Entry | 2 x M25 |
| Temperature Rating | -45°C to +80°C |
| Contact Angles | 15° and 25° |
| Contact Type | Snap-action |
| Protection Class | IP67 |
| Enclosure Color | Yellow (RAL 1012) |
| Weight | 3.7 kg |
| Mounting Orientation | It is suitable for double-sided use. |
| Impact Rating | IK09 (EN 62262) |
| Warranty Period | 24 Months |
Safety Standards
| Electrical Safety | EN 60947 |
| Mechanical Safety | EN 60204 |
| Outdoor Safety | EN 60529 |
| Impact Resistance | EN 62262 |
Certificates | CE, EAC |
| Micro switches are VDE approved. | |
Options
| ATEX Zone 21 / Zone 22 |
| Without Reset Lever |
| Bus Security Interface |
| Custom Contact Angles |
| Mounting Bracket |
| Custom Arm Dimensions |
Spare Parts
| Model | Features |
| Z-15GW22-B | 1NO+1NC Switch |
| KB-R-01 | M25x1,5 Cable Gland |
| 122.R1.1241 | Blind Plug |
| BA-33 | Mounting Bracket (Can be made in custom dimensions) |
| 166.G1.1110 | Enclosure |
| 166.V1.1623 | Teflon/Aluminium Arm |
| 166.RM1.1618 | Reset Lever |
