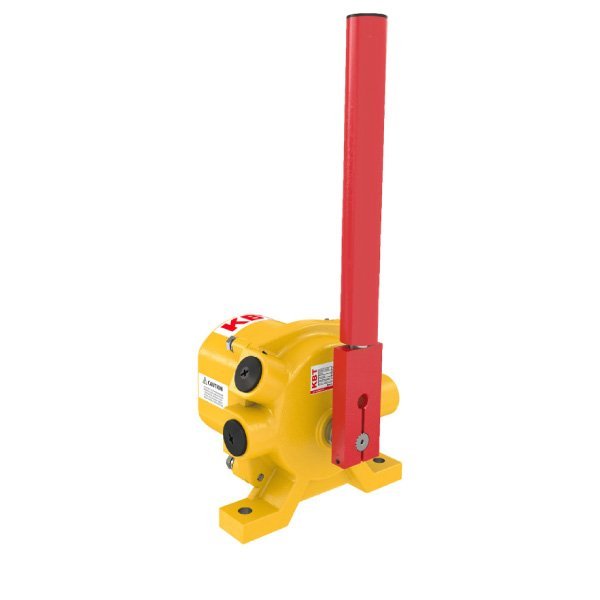

Description
Materials used:
The robust die-cast aluminum housing with an epoxy-based powder coating and all stainless-steel external hardware.
Safety Features:
The heavy-duty rugged design makes them suitable for most industrial applications that require long-term reliable equipment.
General Description:
They are normally placed 0,30m -1,80m from the head and tail pulley on both sides of the belt. The roller arm positioned approximately 2,54cm-7,62cm from the normal belt position.
Certifications and Standards:
The microswitch used in products is VDE approved. All KBT Electric products are produced in accordance with CE and EAC standards.
Technicial Specifications
| Enclosure | Aluminium Casting |
| Micro Switch Rating | 250 VAC 15A / 24 VDC 10A |
| Output Signal | (2) SDPT Alarm and Stop |
| Cable Entry | 2 x M25 |
| Temperature Rating | -45°C to +80°C |
| Contact Angles | 15° and 25° |
| Protection Class | IP67 |
| Enclosure Color | Yellow (RAL 1012) |
| Weight | 3.3 kg |
| Mounting Orientation | It is suitable for double-sided use. |
| Impact Rating | IK09 (EN 62262) |
| Warranty Period | 24 Months |
Safety Standards
| Electrical Safety | EN 60947 |
| Mechanical Safety | EN 60204 |
| Outdoor Safety | EN 60529 |
| Impact Resistance | EN 62262 |
| Certificate | CE, EAC |
| Micro switches are VDE approved. | |
Options
| ATEX Zone 21 / Zone 22 |
| Without Reset Lever |
| Bus Security Interface |
| Custom Contact Angles |
| Mounting Bracket |
| Custom Arm Dimensions |
Spare Parts
| Model | Features |
| Z-15GW22-B | 1NO+1NC Switch |
| 122.R1.1242 | M25x1,5 Cable Gland |
| 122.R1.1241 | Blind Plug |
| BA-55 | Mounting Bracket (Can be made in custom dimensions) |
| 166.G1.1110 | Enclosure |
| 166.KL1.1626 | Roller Arm |
| 166.RM1.1618 | Reset Lever |
