Description

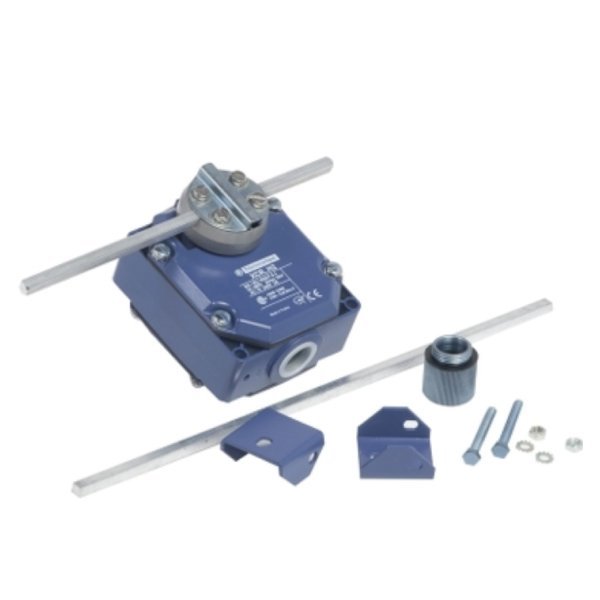

This product is part of the XC Special limit switch range. This limit switch is a device that converts a mechanical motion into an electrical control signal. This special format limit switch is suitable for hoisting and mechanical handling applications. It has two (one normally closed and one normally open), snap action contacts with positive opening operation and provides switch actuation by any moving part. It has a rated operational current of 3A at 240VAC (A300) (AC-15), 0.27A at 250VDC (Q300) (DC13). Its mechanical durability is 10 million operating cycles and electrical durability is 5 million operating cycles. It has a stay put crossed metal square rods lever and supports lateral approach, two directions. The movement of operating head is rotary. It is furnished with screw clamp terminals for electrical connection. Limit switch has one entry tapped for PG13.5 cable gland. It is compliant with CSA, CCC, EN/IEC, and NF standards and is IP54 rated. European standard products (EN 50047) have positive opening contacts, even in snap action versions which allow use in safety applications. The IEC limit switch offers a positive opening on all snap contacts, for safer machinery. The switch is available with modular design for easier maintenance.
| Range of product | OsiSense XC |
|---|---|
| Series name | Special format |
| Product or component type | Limit switch |
| Product specific application | For hoisting and mechanical handling applications |
| Device short name | XCR |
| Sensor design | – |
| body type | Fixed |
| Head type | Rotary head |
| Material | Metal |
| Fixing mode | By the body |
| Movement of operating head | Rotary |
| Type of operator | Stay put crossed rods lever metal square rod 6 mm |
| Type of approach | Lateral approach, 2 directions |
| Electrical connection | Screw-clamp terminals, clamping capacity: 1 x 0.34…2 x 1.5 mm² |
| Number of poles | 4 |
| Contacts type and composition | 2 x (1 NC + 1 NO) |
| Contact operation | Snap action |
| Contact block per direction [control circuit] | 1 per direction |
| Positive opening | With |
| Body material | Zinc alloy |
|---|---|
| Switch actuation | By any moving part |
| Cable entry | 1 entry tapped for Pg 13.5 cable gland, cable outer diameter: 9…12 mm conforming to NF C 68-300 |
| Contacts insulation form | Zb |
| Number of steps | 1 |
| Positive opening minimum torque | 0.7 N.m |
| Minimum torque for tripping | 0.6 N.m |
| Minimum actuation speed | 0.01 m/min |
| Maximum actuation speed | 1.5 m/s |
| Maximum displacement angle | -90 ° 90 ° |
| Contact code designation | A300, AC-15 (Ue = 240 V), Ie = 3 A conforming to EN/IEC 60947-5-1 appendix A Q300, DC-13 (Ue = 250 V), Ie = 0.27 A conforming to EN/IEC 60947-5-1 appendix A |
| [Ui] rated insulation voltage | 300 V conforming to UL 508 500 V (pollution degree 3) conforming to IEC 60947-1 500 V (pollution degree 3) conforming to VDE 0110 300 V conforming to CSA C22.2 No 14 |
| Maximum resistance across terminals | 25 MOhm conforming to IEC 60255-7 category 3 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60664 6 kV conforming to IEC 60947-1 |
| Short-circuit protection | 10 A cartridge fuse, type gG |
| Electrical durability | 5000000 cycles, DC-13, inductive load type, 120 V, 4 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C 5000000 cycles, DC-13, inductive load type, 24 V, 7 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C 5000000 cycles, DC-13, inductive load type, 48 V, 10 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C |
| Mechanical durability | 10000000 cycles |
| Width | 85 mm |
| Height | 95 mm |
| Depth | 75 mm |
| Net weight | 1.135 kg |
| Terminals description ISO n°1 | (21-22)NC (13-14)NO |
| Shock resistance | 68 gn conforming to IEC 60068-2-27 |
|---|---|
| Vibration resistance | 9 gn (f= 10…500 Hz) conforming to IEC 60068-2-6 |
| IP degree of protection | IP54 conforming to IEC 60529 |
| Overvoltage category | Class I conforming to IEC 61140 Class I conforming to NF C 20-030 |
| Ambient air temperature for operation | -25…70 °C |
| Ambient air temperature for storage | -40…70 °C |
| Protective treatment | TC |
| Product certifications | CCC CSA |
| Standards | IEC 60204-1 EN 60947-5-1 CSA C22.2 No 14 IEC 60947-5-1 EN 60204-1 NF C 79-130 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 12.2 cm |
| Package 1 Width | 9.0 cm |
| Package 1 Length | 31.5 cm |
| Package 1 Weight | 1.18 kg |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 6 |
| Package 2 Height | 30.0 cm |
| Package 2 Width | 30.0 cm |
| Package 2 Length | 40.0 cm |
| Package 2 Weight | 7.402 kg |
