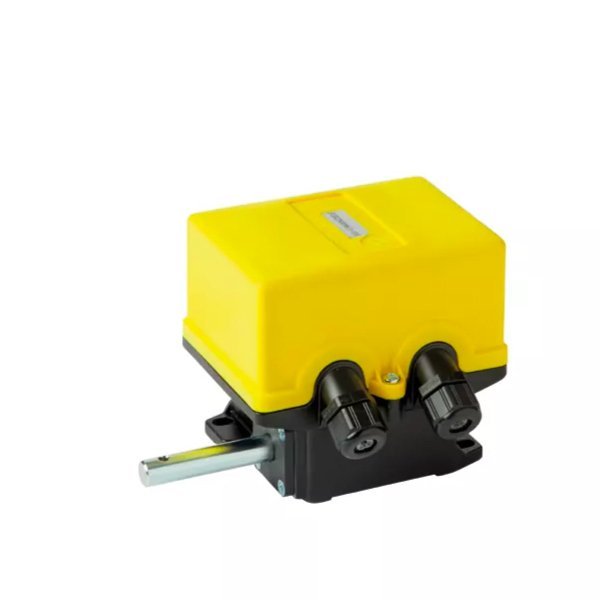

FGR2 B – Rotary Gear Limit Switches

FGR2 – Double overhang shaft – 4 or 6 Microswitches

– With double overhang shaft;
– IP65 protection class (IEC / EN 60529);
– Available in direct ratios: 1:12, 1:33, 1:50, 1:75, 1:100, 1:200, (optional on request);
– Microswitches:
1. device available with 4 or 6 microswitches;
2. the working point is adjustable with a calibration screw;
3. each switch has 1NO + 1NC inside;
4. positive opening for NC contacts.

FGR2N006B, FGR2N006B6

FGR2N007B, FGR2N007B6

FGR2N008B, FGR2N008B6

FGR2N009B, FGR2N009B6

FGR2N010B, FGR2N010B6
