Description

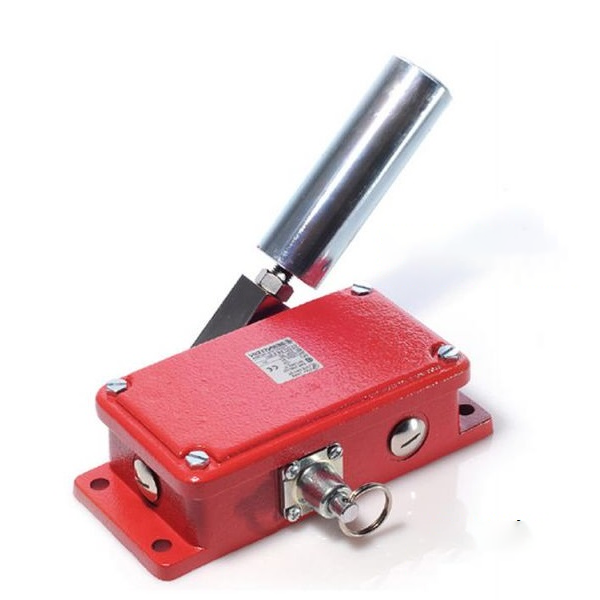

Bernstein 6015736003 (601.5736.003) SI2-U2Z AW R-RAST Offers
Utilize a rugged, heavy-duty design and are built to last.
Features
- Used to monitor position and tracking of conveyor belts
- Mounts on conveyor structure and adjusts so roller arm is the proper distance and angle from outside edge of the belt
- If belt drifts out of alignment, it contacts the roller actuator arm, which rotates the actuation shaft and triggers the belt misalignment alarm signal
- Modular design of the base unit for added convenience during installation and maintenance
- Rugged cast aluminum, heavy-duty design
- Protection degree IP65 for long last and many years of dependable service
- Suited for the most challenging applications
- Can be operated from any direction as microswitches allow clockwise or counterclockwise rotation of the external lever
- Cover locked by four shake-proof stainless-steel screws
- Internal terminal board allows easy connection and faster maintenance procedures
- Available with ATEX22 and ATEX21 approvals
Applications
- Monitor your conveyors, equipment and processes
- Prevent accidents and protect equipment
- Used for position information, control signals and to identify potentially hazardous situations with your process equipment
